Thermal Conductive Pad in Satellite Communication Equipment
2025/06/16
0
1. Introduction
In satellite communication equipment, the efficient operation of electronic components is crucial for maintaining reliable communication links. However, these components generate a significant amount of heat during operation, which, if not properly managed, can lead to performance degradation, reduced lifespan, and even system failures. Thermal conductive pads have emerged as an essential solution for addressing the thermal management challenges in satellite communication equipment. They play a vital role in ensuring the stable and continuous operation of satellite communication systems by effectively dissipating heat and maintaining optimal operating temperatures.

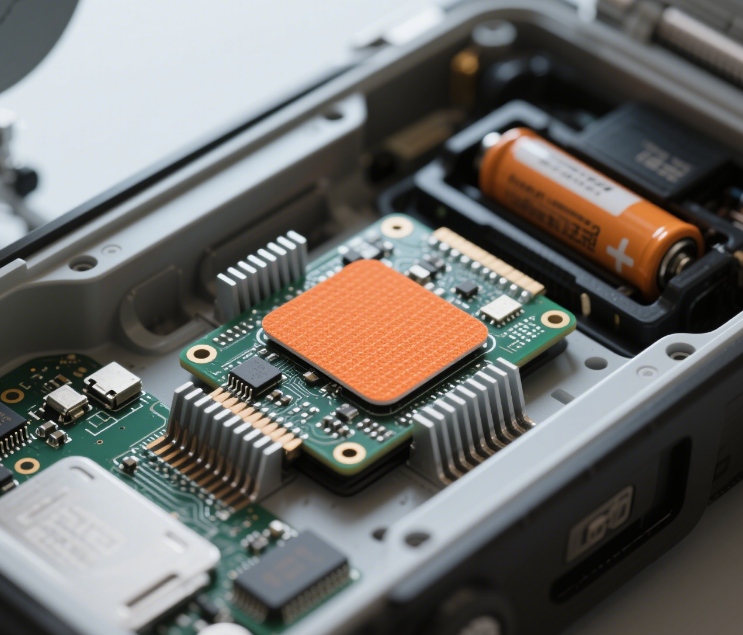

thermal conductive pad in satellite communication equipment
2. Function and Significance
2.1 Heat Dissipation
The primary function of thermal conductive pads in satellite communication equipment is heat dissipation. Components such as high – power amplifiers, transceivers, and signal processors generate substantial heat during operation. Thermal conductive pads fill the microscopic gaps between these heat – generating components and heat sinks or cooling structures. By replacing the air in these gaps, which has a very low thermal conductivity, thermal conductive pads significantly reduce the contact thermal resistance. This allows heat to be transferred more efficiently from the components to the heat sinks, enabling the heat to be dissipated into the surrounding environment, typically the vacuum of space through radiation. For example, in a high – power amplifier with a heat output of several hundred watts, a thermal conductive pad can reduce the operating temperature of the amplifier by 10 – 15°C, ensuring its performance remains within the specified range.
2.2 Electrical Insulation
In addition to heat dissipation, thermal conductive pads provide electrical insulation. Satellite communication equipment contains various electrical circuits and components with different electrical potentials. To prevent electrical short – circuits and ensure the safety and reliability of the equipment, electrical insulation is necessary. Most thermal conductive pads are made from materials with excellent electrical insulation properties, such as silicone – based pads filled with insulating fillers like aluminum oxide or boron nitride. This insulation function is especially important in high – voltage circuits and areas where components with different electrical charges are in close proximity.
2.3 Mechanical Buffer
Satellite communication equipment is subjected to extreme mechanical conditions during launch, including high – intensity vibrations and shocks, and may also face impacts from micrometeoroids during operation in space. The flexible and elastic nature of thermal conductive pads acts as a mechanical buffer. They can absorb and dampen mechanical stresses, protecting the delicate electronic components from damage. For instance, during the violent vibrations experienced during a rocket launch, the thermal conductive pad between a sensitive integrated circuit and its housing can prevent the circuit from cracking or breaking due to mechanical forces.
2.4 Adaptability to Complex Surfaces
Satellite communication equipment often has complex geometries, with irregular – shaped components and uneven surfaces. Thermal conductive pads are highly adaptable to these complex surface conditions. Their malleability allows them to conform closely to various surfaces, ensuring maximum contact area for efficient heat transfer. They can be pre – cut into different shapes and sizes according to the specific requirements of the equipment, facilitating easy installation and integration into the satellite communication system.
thermal conductive pad in satellite communication equipment
3. Material and Characteristics
3.1 Matrix Materials
- Silicone: Silicone is one of the most commonly used matrix materials for thermal conductive pads in satellite communication equipment. It offers excellent temperature resistance, with an operating temperature range typically from – 50°C to 200°C. Silicone – based pads are highly flexible, providing good mechanical compliance and the ability to conform to irregular surfaces. They also have excellent electrical insulation properties, chemical stability, and resistance to aging, making them suitable for long – term use in the harsh space environment.
- Polyurethane: Polyurethane – based thermal conductive pads have relatively high mechanical strength, which can be beneficial in applications where additional structural support is required. However, their temperature resistance is generally lower compared to silicone, usually limited to a range of – 40°C to 120°C. They are often used in situations where the mechanical performance is more critical than extreme temperature resistance.
- Acrylate: Acrylate – based pads are cost – effective and have good adhesion properties. Although their thermal conductivity is relatively moderate, they can be useful in applications where a certain level of bonding strength is needed along with basic thermal management capabilities.
- Epoxy: Epoxy – based thermal conductive pads offer high hardness and good mechanical stability. They are suitable for applications where a rigid structure is required, but their flexibility is relatively poor compared to silicone – based pads.
3.2 Thermal Conductive Fillers
- Metal Oxides: Metal oxides such as aluminum oxide (Al₂O₃), zinc oxide (ZnO), and magnesium oxide (MgO) are widely used as thermal conductive fillers. These fillers are cost – effective and have good electrical insulation properties. They can significantly enhance the thermal conductivity of the matrix material. For example, adding a high concentration of aluminum oxide particles to a silicone matrix can increase the thermal conductivity of the pad from about 0.5 W/(m·K) to 3 – 5 W/(m·K).
- Nitrides: Nitrides like aluminum nitride (AlN) and boron nitride (BN) are known for their high thermal conductivity and excellent electrical insulation. Aluminum nitride, in particular, has a very high thermal conductivity of around 170 – 230 W/(m·K), but it is relatively expensive. Boron nitride is also highly regarded for its thermal conductivity and low density, which is advantageous for satellite applications where weight reduction is a key consideration.
- Ceramic Fillers: Ceramic fillers such as silicon carbide (SiC) and aluminum borate can provide a good balance between thermal conductivity and electrical insulation. They are often used in applications where a combination of these properties is required.
4. Application Examples
4.1 Satellite Communication Antennas
Satellite communication antennas, especially high – gain antennas, contain high – power amplifier modules and feed – source components that generate a large amount of heat. Thermal conductive pads are placed between these heat – generating components and the antenna’s heat – dissipating structure. For example, in a Ku – band satellite communication antenna, thermal conductive pads are used to transfer heat from the power amplifier to the antenna’s aluminum – alloy heat sink. This ensures that the antenna operates at an optimal temperature, maintaining its radiation pattern and signal – transmission efficiency.
4.2 Satellite Communication Circuit Boards
Circuit boards in satellite communication equipment are densely populated with various electronic components, including integrated circuits, resistors, and capacitors. Thermal conductive pads can be used between the circuit board and a heat sink or directly on the surface of high – heat – generating components. In a satellite – based communication transceiver circuit board, thermal conductive pads are applied to the microprocessors and radio – frequency integrated circuits. This helps to dissipate the heat generated by these components, preventing overheating and ensuring the proper functioning of the entire transceiver system.
5. Challenges and Future Developments
5.1 Challenges
- Space Environment: The space environment presents unique challenges for thermal conductive pads. Extreme temperature fluctuations, intense radiation, and the vacuum of space can cause material degradation over time. For example, radiation can cause the organic matrix materials of the thermal conductive pads to degrade, reducing their flexibility and thermal conductivity.
- Weight Constraints: Satellites have strict weight limitations. While high – performance thermal conductive pads with better thermal conductivity often contain more fillers, which can increase their weight. Balancing the need for high – performance thermal management with weight reduction requirements is a significant challenge.
- Long – Term Reliability: Satellite communication equipment is designed to operate for long periods, often 10 – 15 years or more. Ensuring the long – term reliability of thermal conductive pads under the harsh space conditions is crucial. Aging and degradation of the pads over time can lead to reduced thermal performance, potentially causing equipment failures.
5.2 Future Developments
- Advanced Materials Research: Researchers are exploring new materials and composite formulations to improve the performance of thermal conductive pads. For example, the development of nanocomposite materials, where nanoscale thermal conductive fillers are incorporated into the matrix, shows promise in enhancing thermal conductivity while maintaining or improving other properties such as flexibility and electrical insulation.
- Intelligent Thermal Management: Future thermal conductive pads may incorporate intelligent features, such as temperature – sensitive materials that can adjust their thermal conductivity based on the operating temperature. This would enable more efficient thermal management, adapting to the varying heat loads of satellite communication equipment during different operational phases.
- Lightweight Design Optimization: New manufacturing techniques and material engineering approaches will be used to develop lightweight thermal conductive pads without sacrificing performance. This may involve the use of porous materials, hollow – structured fillers, or innovative material combinations to reduce weight while maintaining high thermal conductivity.
6. Conclusion
Thermal conductive pads are indispensable components in satellite communication equipment, playing a multi – faceted role in heat dissipation, electrical insulation, mechanical protection, and adaptation to complex surfaces. Their performance directly impacts the reliability and efficiency of satellite communication systems. Although they face several challenges in the harsh space environment, ongoing research and development efforts are expected to lead to the creation of more advanced thermal conductive pads that can better meet the requirements of future satellite communication technologies.
